Gears and Splined Shafts

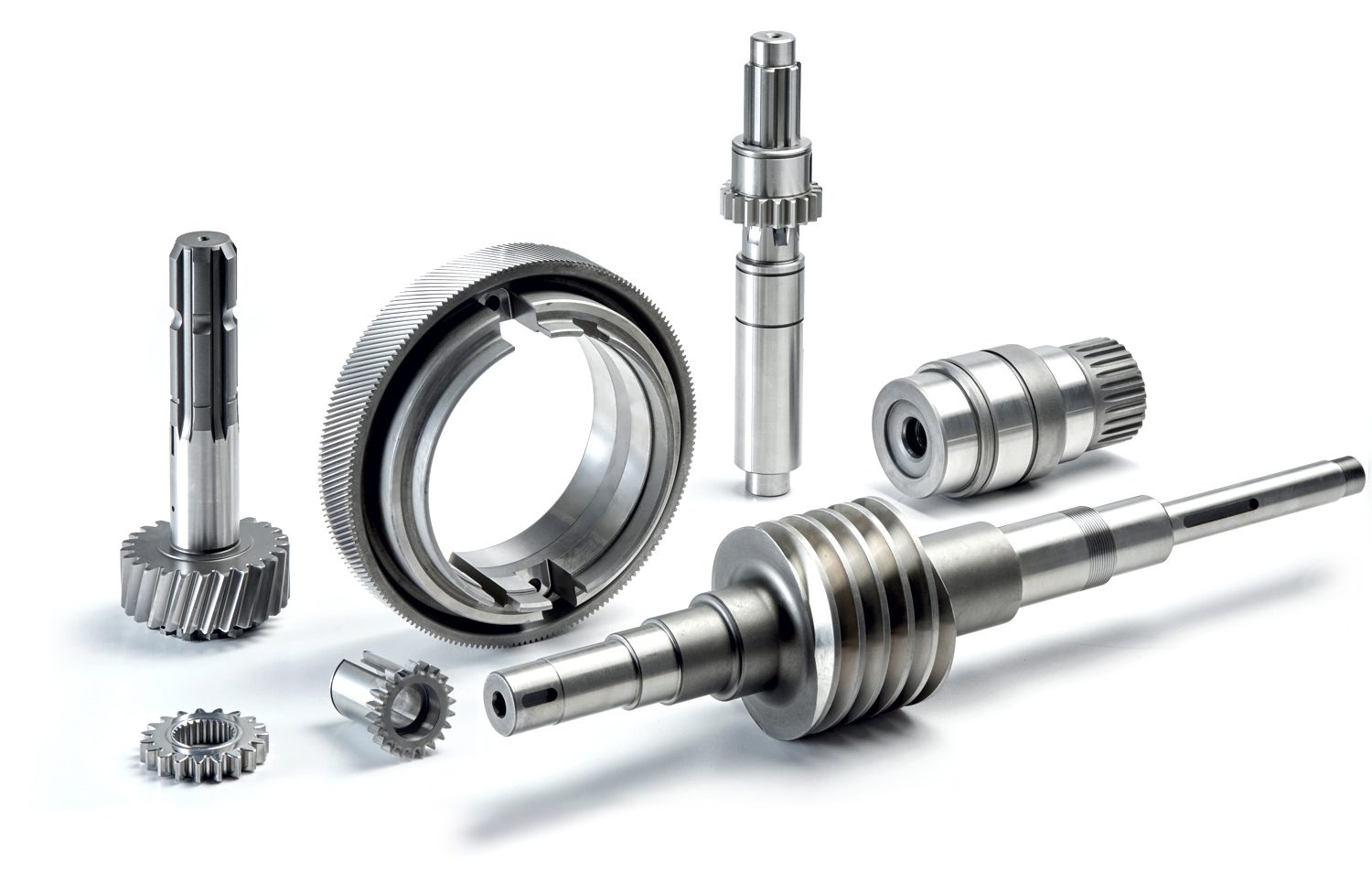

GEARS is our new range of precision mechanical components, including ground gears and special shafts. GEARS was established through the acquisition of the historic company CGM, now part of the BENZI Group, and combines expertise, material quality, and reliable manufacturing processes to deliver tailor-made power transmission solutions. The GEARS range is entirely Made in Italy.
Ground Cylindrical Gears – Spur and Helical
Complete manufacturing or machining of gears with internal or external teeth, spur or helical,
produced according to customer specifications.
| Machining processes: | Min Dia. | Max Dia. | Min Mod. | Max Mod. |
|---|---|---|---|---|
| Internal gear hobbing or shaping | - | 400 mm | 0,5 mm | 8 mm |
| External gear hobbing or shaping | 10 mm | 800 mm | 0,5 mm | 12 mm |
| External gear grinding | 10 mm | 430 mm | 0,5 mm | 8 mm |
Splined Shafts
Complete supply or machining of splined shafts manufactured in accordance with UNI 8953 and DIN 5463–5464–5471–5472–9611 standards, or with involute spline profiles according to DIN 5480 / DIN 5482..
| Machining processes: | Min Dia. | Max Dia. | Shaft Maximum length |
|---|---|---|---|
| Spline hobbing | 13 mm | 150 mm | 2000 mm |
| Spline Grinding | 13 mm | 150 mm | 1200 mm |
